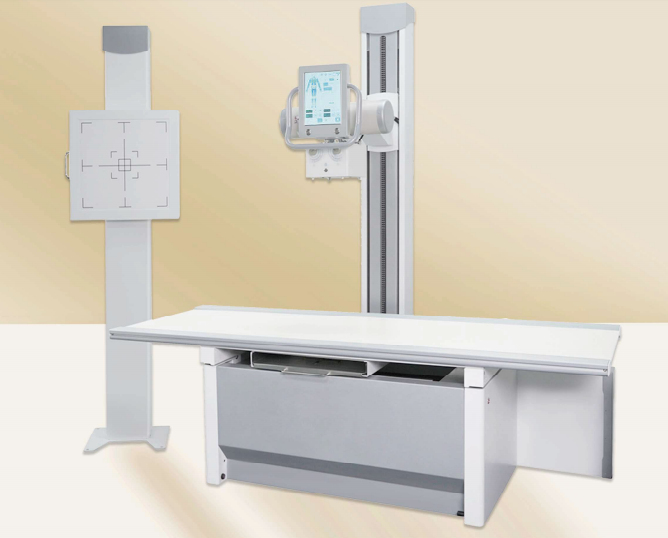

Digital X-ray Radiography System

Description

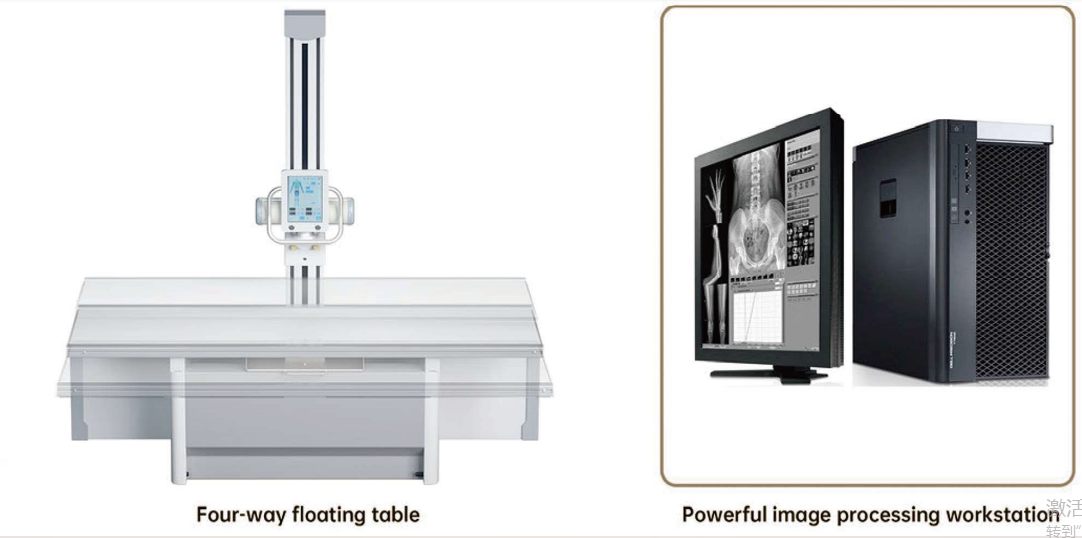

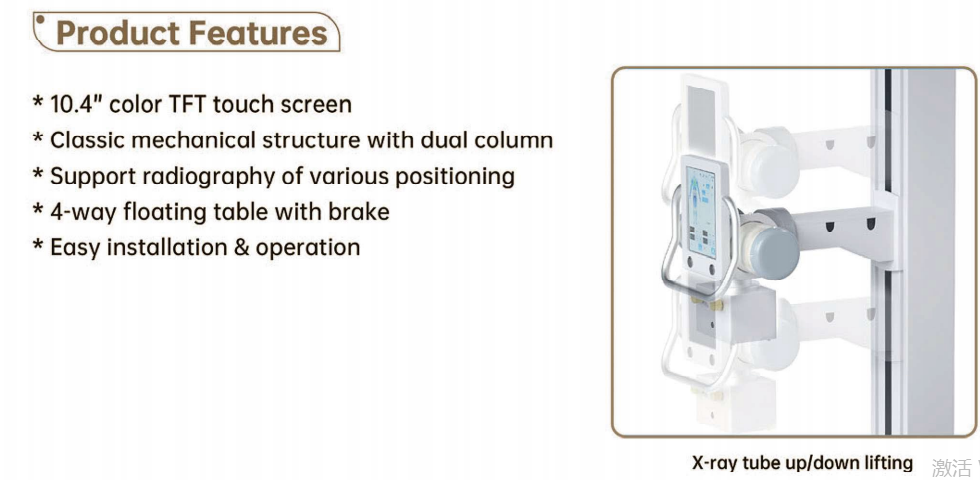

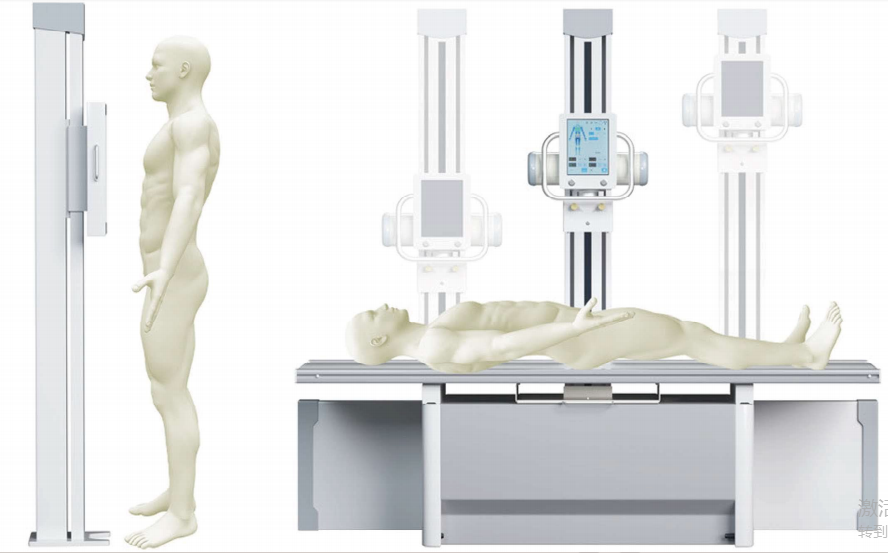

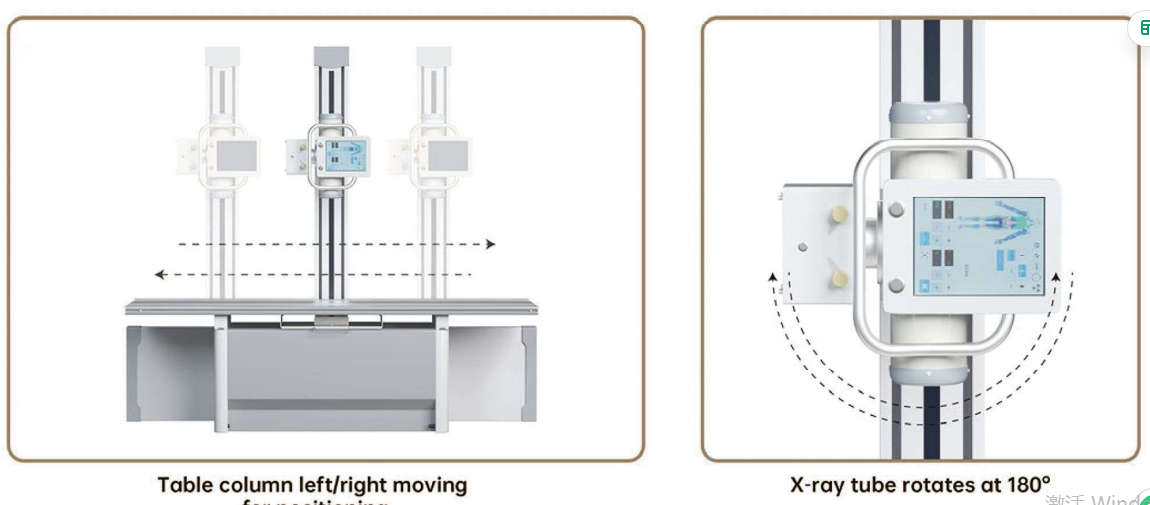

Product Features 10.4INCH color TFT touch screen Classic mechanical structure with dual column Support radiography of various positioning 4-way floating table with brake Easy installation&operatiaon Parameter: Max.kw:32KW Power supply:50HZ,60HZ, Wire dimeter>4mm, internal resistance<0.5, 32KW is 220V, 1280 v available. mA:10-400 mAS:0.1-320 KV:40-125KV,STEPPING BY 1kV Focus:Dual focus:1.0*1.0MM/2.0*2.0MM Rotating speed & Heat Capacity:2800prm/1300kHU Inverter Frequency:50kHZ-220kHZ Tube Movement:UP&Down lift, right rotation Column:Left&right movable Radiography Table:Four-way floating Flat panel detector: Amorphous silicon cesium iodide Detector Size:17*17inch Pixel Resolution:3072*3072 Pixel Pitch:139um A/D Conversion:16bits Spatial Resolution:3.6lp/mm Size:460*460*15mm Interface: Wired(Wireless is optional)
