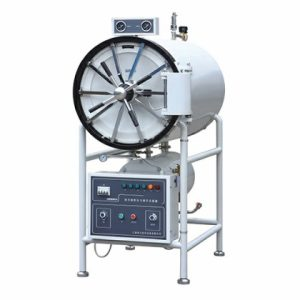

Horizontal Pressure Steam Sterilizer

Description

Automatically controlled the sterilizing process, easy to operate. With drying function, suitable for the medical dressing drying. With over-temperature, over-pressure auto-protect. The door can not be open until the pressure in the chamber is reduced to 0.027MPa. And the unit can not be started on if the door doesn’t close well. The safety valve will be open automatically when the inner pressure over 0.24MPa and the steam would be exhausted the water tank. Automatically cut off the power if the water-lack happened, and alarm at the meanwhile. The chamber of the sterilizer is made of stainless steel. Technical Data MODEL WS-150YDA WS-200YDA WS-280YDA WS-400YDA WS-560YDA Sterilizing chamber volume 150L 200L 280L 400L 500L Sterilizing chamber Size Φ440×1000mm Φ515×1000mm Φ600×1000mm Φ700×1100mm Φ700×1300mm Working pressure ： 0.22MPa Working temperature ： 134°C Temperature adjust range ： 40~134°C Time for sterilization ： 0~60 Min Time for drying：0~60 Min Heat average： ≤ ± 2°C Power： 9KW/380V.50Hz 9KW/380V.50Hz 12KW/380V.50Hz 18KW/380V.50Hz 18KW/380V.50Hz Dimension(mm) 1350×600×1520 1400×670×1650 1400×770×1780 1430×880×1830 1800×900×1830 Transport dimension(mm) 1560×750×1850 1560×820×1930 1680×920×1950 1600×1050×2550 1850×1050×2650 G.W/N.W 320kg / 278kg 378kg / 318kg 465kg / 391kg 530kg / 450kg 627kg / 546kg
