Ophthalmic A/B-Scan

Description

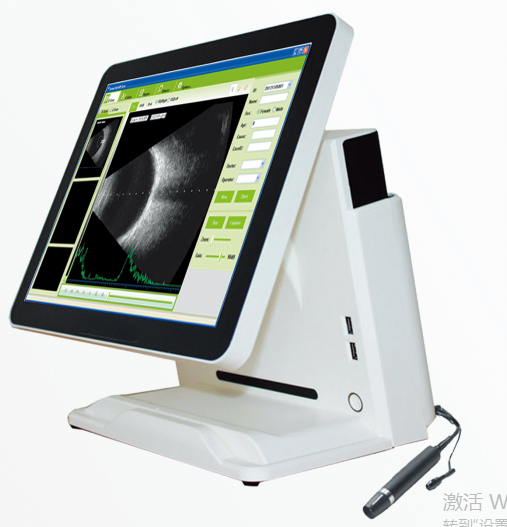

-15 inch LED touch screen,all-in-one, pretty,portable -Integrated Image Capture -Integrated Patient Database -Integrated Report Editor -Can work with battery Ophthalmic A/B Ultrasound Scanner with normal,vitreous body enhancement, retina observation mode,mainly used for diagnosis of intra- ocular diseases, display the location,shape range of the focus of infection and the relationship with the surrounding tissue.Can be diagnosed vitreous opacity,retinal detachment, eye base tumors etc.eye diseases.A scan is used to mea- sure anterior chamber depth, lens thickness,axial length,calculate diopter of implant IOL as well. Modules: Ophthalmic Ultrasound B-Scan Ophthalmic Biometry A-Scan Features: ll in one device 15 inch LED touch screen Can work with Battery Integrated Image Capturelntegrated Patient Database Integrated Report Editor 2.A-Scan Scan Modes: Contact/Immersion Examination Modes: Normal Dense Cataract Aphakic Pseudophakic(PMMA,Acrylic,Silicone) Measurements: AXL,ACD,Lens and Vitreous Individual Segment Velocities Average and Standard Deviations for AXL,ACD,Lens&Vitreous Specifications: Clinical Accuracy ±0.1mm Electrical Accuracy 0.0375mm IOL Calculation in 0.5D Increments IOL Calculation Formulas: SRK-II SRK-T Binkhorst-IⅡ Holladay Hoffer-Q Haigis (Standard) A-Scan Probe: Hand-Held,Immersion or Slit Lamp Mounted Applicable 3.B-Scan: Scan Modes: B Mode B+A Mode B+B Mode Features: Adjustable Zoom,Gain Variable Gain Control Capture of Frames and Cline Loops Available. 256 Levels Gray Scale Clinical Resolution:0.1mm Probe: Transducer Frequency:12.5MHz 53°Sector Scanning Method
